What is Shielding of Beta Radiation – Electrons – Definition

Shielding of beta radiation must use materials with low atomic number Z. Ranges of beta particles are longer and depends strongly on initial kinetic energy of particle. Radiation Dosimetry
Radiation Protection Principles - Time, Distance, Shielding
In radiation protection there are three ways how to protect people from identified radiation sources:
  • Limiting Time. The amount of radiation exposure depends directly (linearly) on the time people spend near the source of radiation. The dose can be reduced by limiting exposure time.
  • Distance. The amount of radiation exposure depends on the distance from the source of radiation. Similarly to a heat from a fire, if you are too close, the intensity of heat radiation is high and you can get burned. If you are at the right distance, you can withstand there without any problems and moreover it is comfortable. If you are too far from heat source, the insufficiency of heat can also hurt you. This analogy, in a certain sense, can be applied to radiation also from radiation sources.
  • Shielding. Finally, if the source is too intensive and time or distance do not provide sufficient radiation protection, the shielding must be used. Radiation shielding usually consist of barriers of lead, concrete or water. There are many many materials, which can be used for radiation shielding, but there are many many situations in radiation protection. It highly depends on the type of radiation to be shielded, its energy and many other parametres. For example, even depleted uranium can be used as a good protection from gamma radiation, but on the other hand uranium is absolutely inappropriate shielding of neutron radiation.
radiation protection pronciples - time, distance, shielding
Principles of Radiation Protection – Time, Distance, Shielding

Description of Beta Particles

Beta particles are high-energy, high-speed electrons or positrons emitted by certain fission fragments or by certain primordial radioactive nuclei such as potassium-40. The beta particles are a form of ionizing radiation also known as beta rays. The production of beta particles is termed beta decay. There are two forms of beta decay, the electron decay (β− decay) and the positron decay (β+ decay). In a nuclear reactor occurs especially the β− decay, because the common feature of the fission products is an excess of neutrons (see Nuclear Stability). An unstable fission fragment with the excess of neutrons undergoes β− decay, where the neutron is converted into a proton, an electron, and an electron antineutrino.

beta decay
Beta decay of C-14 nucleus.

Shielding of Beta Radiation – Electrons

The following features of beta particles (electrons) are crucial in their shielding.

  • Beta particles are energetic electrons, they are relatively light and carry a single negative charge.
  • Their mass is equal to the mass of the orbital electrons with which they are interacting and unlike the alpha particle a much larger fraction of its kinetic energy can be lost in a single interaction.
  • Their path is not so straightforward. The beta particles follow a very zig-zag path through absorbing material. This resulting path of particle is longer than the linear penetration (range) into the material.
  • Since they have very low mass, beta particles reach mostly relativistic energies.
  • Beta particles also differ from other heavy charged particles in the fraction of energy lost by radiative process known as the bremsstrahlung. Therefore for high energy beta radiation shielding dense materials are inappropriate.
  • When the beta particle moves faster than the speed of light (phase velocity) in the material it generates a shock wave of electromagnetic radiation known as the Cherenkov radiation.

Beta radiation ionizes matter weaker than alpha radiation. On the other hand the ranges of beta particles are longer and depends strongly on initial kinetic energy of particle. Some have enough energy to be of concern regarding external exposure. A 1 MeV beta particle can travel approximately 3.5 meters in air. Such beta particles can penetrate into the body and deposit dose to internal structures near the surface. Therefore greater shielding than in case of alpha radiation is required.

Materials with low atomic number Z are appropriate as beta particle shields. With high Z materials the bremsstrahlung (secondary radiation – X-rays) is associated. This radiation is created during slowing down of beta particles while they travel in a very dense medium. Heavy clothing, thick cardboard or thin aluminium plate will provide protection from beta radiation and prevents of production of the bremsstrahlung. Lead and plastic are commonly used to shield beta radiation. Radiation protection literature is ubiquitous in advising the placement of plastic first to absorb all the beta particles before any lead shielding is used. This advice is based on the well established theory that radiative losses (bremsstrahlung production) are more prevalent in higher atomic number (Z) materials than in low Z materials.

See also more theory: Interaction of Beta Radiation with Matter

See also calculator: Beta activity to dose rate

Alpha Particle - Cloud Chamber
Alpha particles and electrons (deflected by a magnetic field) from a thorium rod in a cloud chamber.
Source: wikipedia.org
Bremsstrahlung vs. Ionization
Fractional energy loss per radiation length in lead as a
function of electron or positron energy.

Source: http://pdg.lbl.gov/

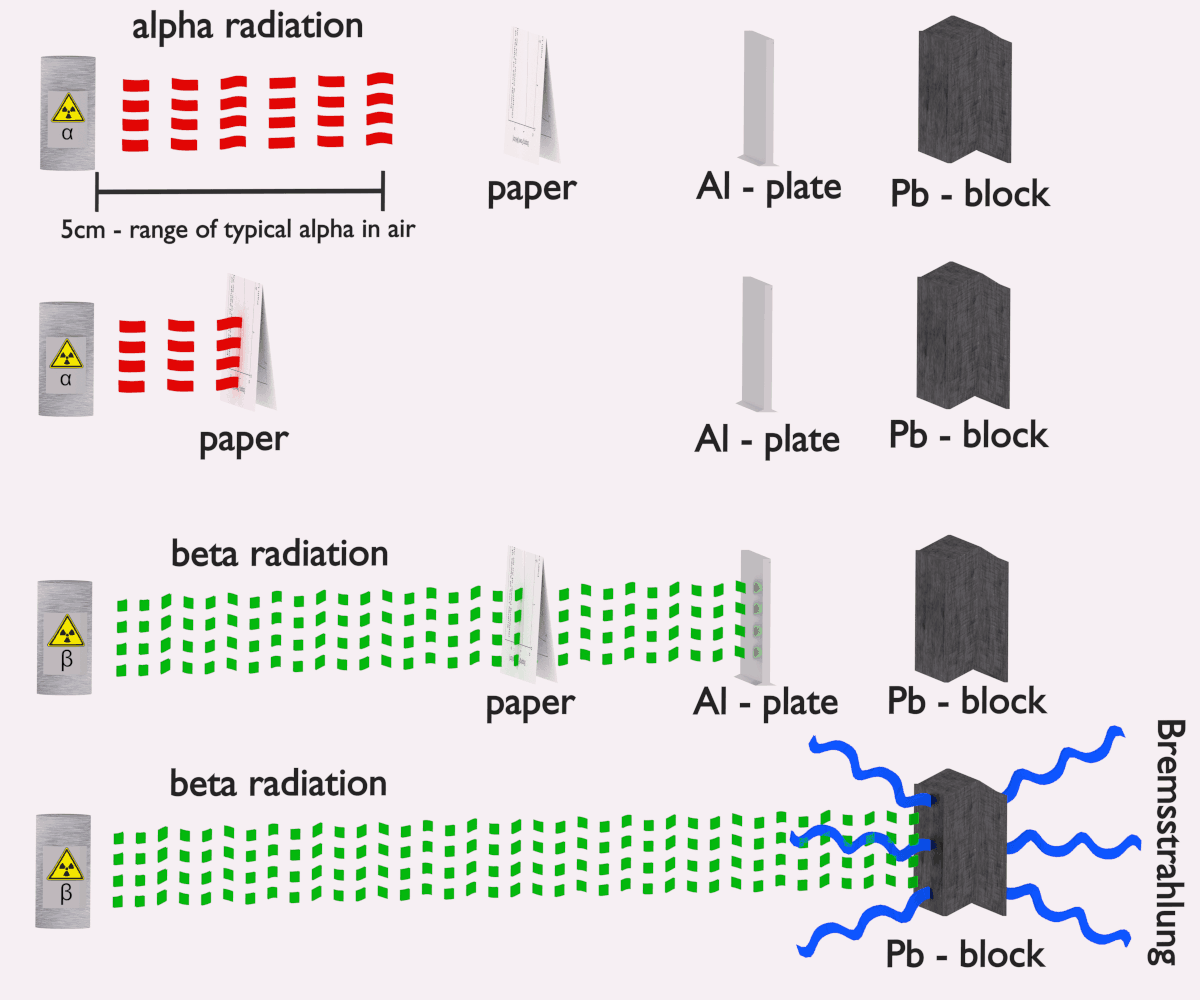

Shielding of Alpha and Beta Radiation
Basic materials for alpha and beta particles shielding.

See also:

Shielding of Alpha Radiation

See also:

Shielding of Ionizing Radiation

See also:

Shielding of Positrons
